SML-LXR851SGC-TR
LED GREEN CLEAR SMD R/AManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

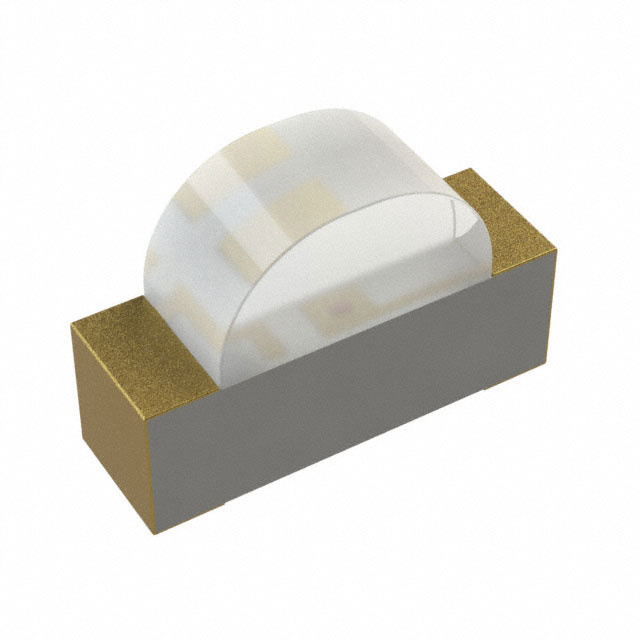

Lumex Opto/Components Inc. SML-LXR851SGC-TR is a discrete surface-mount LED designed for indication applications. This component features a clear, colorless lens with a domed top, measuring 2.00mm x 1.00mm, within a 3.00mm L x 2.00mm W footprint. It operates with a typical forward voltage of 2.1V and a test current of 20mA, producing a luminous intensity of 16mcd at a peak wavelength of 565nm. The viewing angle is 120°. This LED is supplied on a tape and reel for automated assembly and is suitable for right-angle mounting. Its specifications make it relevant for use in industrial controls, medical devices, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Green |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 16mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Surface Mount, Right Angle |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
