SML-LXR44SRSUGC-TR
LED GRN/RED CLR BOOMERANG SMD RAManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

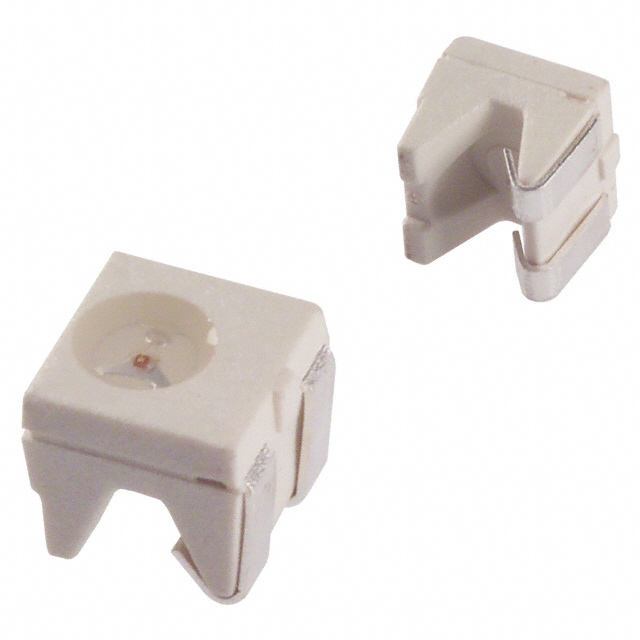

Lumex Opto/Components Inc. SML-LXR44SRSUGC-TR is a bicolor, bidirectional LED designed for surface mount, right-angle applications. This discrete indicator features a Boomerang package, measuring 4.00mm L x 3.60mm W with a 2.40mm diameter colorless, clear, domed lens. The LED exhibits a typical forward voltage of 2.1V for green and 1.85V for red, with a test current of 20mA for both colors. Luminous intensity is rated at 90mcd for green and 200mcd for red, with a 120° viewing angle. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication. Supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Boomerang |
| Color | Green, Red |
| Size / Dimension | 4.00mm L x 3.60mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 90mcd Green, 200mcd Red |
| Configuration | Bidirectional |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.85V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Height (Max) | 4.00mm |
| Wavelength - Peak | 574nm Green, 660nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | Boomerang |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 2.40mm Dia |
