SML-LXL1210SRGC-TR
LED GREEN/RED CLEAR 1210 SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

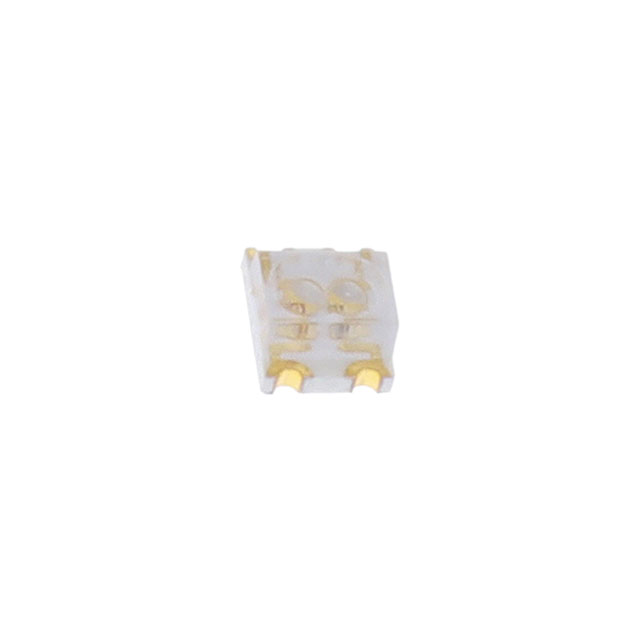

Lumex Opto/Components Inc. SML-LXL1210SRGC-TR is a discrete LED component featuring independent green and red emitters within a 1210 4-SMD, No Lead package. This surface-mount device offers a typical forward voltage of 2.1V for green and 1.7V for red, with a test current of 20mA for both colors. The component provides a luminous intensity of 20mcd for green and 35mcd for red, each with a dominant wavelength of 570nm for green and 660nm for red. The clear, colorless lens has a flat-top rectangular style measuring 1.80mm x 2.50mm, contributing to a 60° viewing angle. The overall dimensions are 3.00mm L x 2.50mm W with a maximum height of 1.50mm. Supplied on tape and reel, this component is suitable for various industrial automation and consumer electronics applications requiring dual-color status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead |
| Color | Green, Red |
| Size / Dimension | 3.00mm L x 2.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 20mcd Green, 35mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 60° |
| Height (Max) | 1.50mm |
| Wavelength - Peak | 570nm Green, 660nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | 1210 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.80mm x 2.50mm |
