SML-LX2832IGC-TR
LED GREEN/RED CLEAR 2832 SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

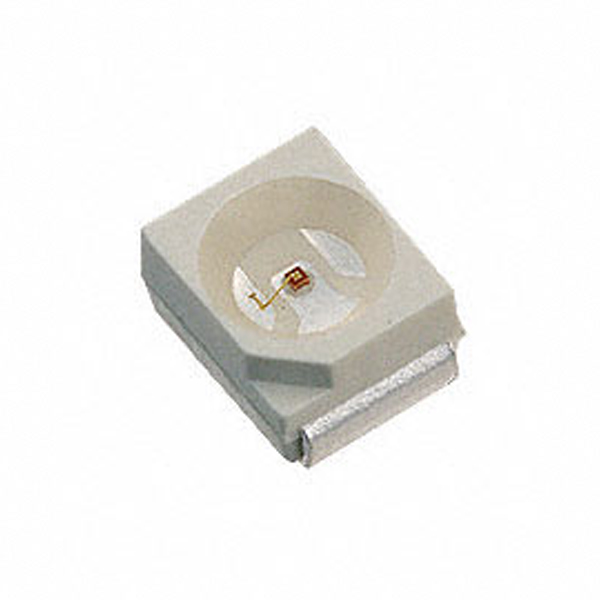

Lumex Opto/Components Inc. SML-LX2832IGC-TR is a discrete surface-mount LED with independent green and red emitters. This 4-PLCC package component, measuring 3.20mm L x 2.80mm W x 2.10mm H, features a clear, colorless lens with a round, flat-top style. The forward voltage is typically 2.2V for green and 2V for red, with a test current of 20mA for both colors, yielding a luminous intensity of 25mcd. The viewing angle is 120°. This component is suitable for indication applications across various industries, including automotive, industrial control, and consumer electronics. The SML-LX2832IGC-TR is supplied on tape and reel. Peak wavelengths are 565nm for green and 635nm for red.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Color | Green, Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 25mcd Green, 25mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 565nm Green, 635nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | 2832 |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
