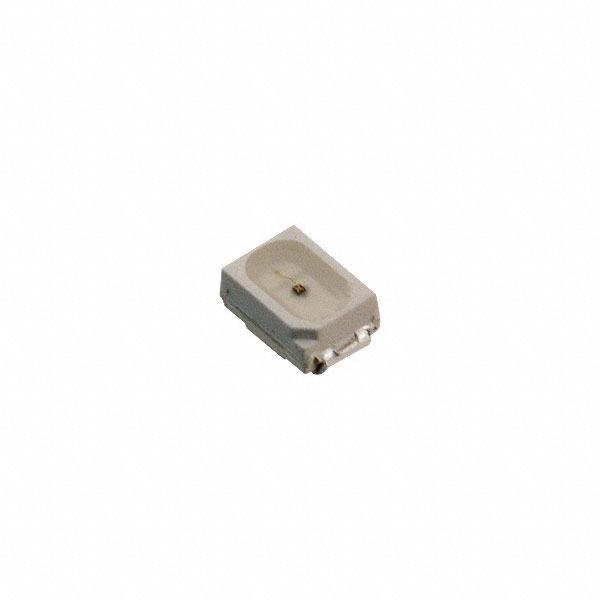

SML-LX23SRC-TR
LED RED CLEAR SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lumex Opto/Components Inc. SML-LX23SRC-TR is a red, clear lens, surface-mount LED. This discrete indicator component features a 1.7V typical forward voltage and operates at 20mA for a 100mcd luminous intensity. The 2-SMD, J-Lead package has dimensions of 3.00mm L x 2.00mm W, with a maximum height of 1.40mm. Its rectangular lens, measuring 2.00mm x 1.40mm with a flat top, provides a 90° viewing angle. Supplied in tape and reel, this component is suitable for general indication in industrial and consumer electronics applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Red |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 1.40mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.40mm |
