SML-LX1206SRW-TR
LED RED DIFFUSED 1206 SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

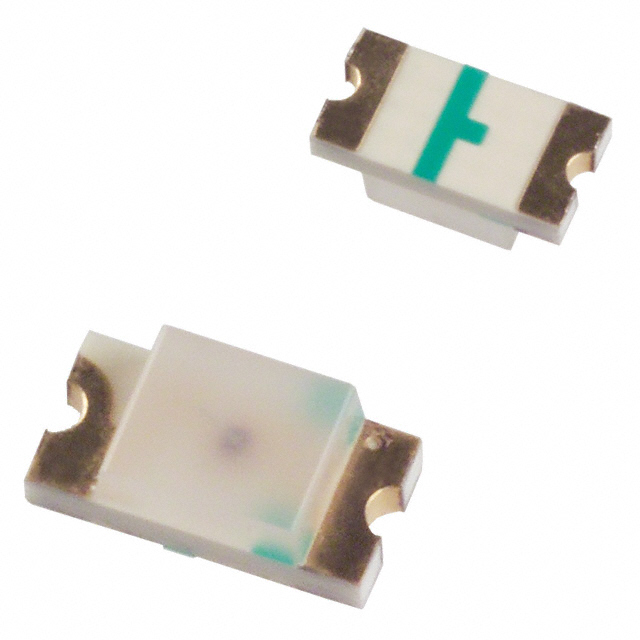

Lumex Opto/Components Inc. SML-LX1206SRW-TR is a red, diffused LED in a 1206 (3216 Metric) SMD package. This component features a standard configuration with a forward voltage of 1.8V (typical) at 20mA test current. The diffused lens, with a flat-top rectangular style, provides a wide 160° viewing angle. Measuring 3.20mm L x 1.60mm W with a maximum height of 1.10mm, it offers a millicandela rating of 15mcd. Supplied on tape and reel (TR) for efficient surface mounting, the SML-LX1206SRW-TR is suitable for applications requiring discrete LED indication in industrial automation, consumer electronics, and general signaling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Red |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 15mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Lens Color | White |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 1206 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
