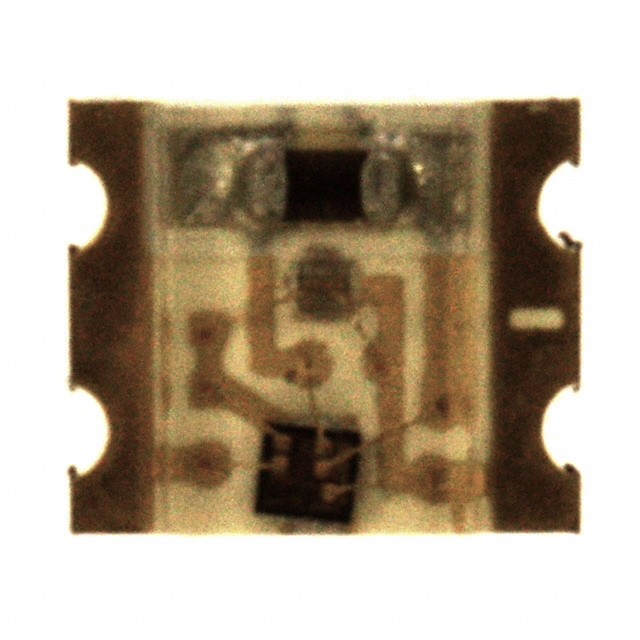

SML-DSP1210USBC-TR
LED BLUE CLEAR 1210 SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lumex Opto/Components Inc. SML-DSP1210USBC-TR is a blue LED designed for surface mount applications. This discrete indicator features a 1210 (3225 Metric) package with dimensions of 3.20mm L x 2.70mm W and a maximum height of 1.10mm. The LED emits a clear blue light with a peak wavelength of 470nm and a typical forward voltage of 2V at a test current of 20mA, producing a millicandela rating of 35mcd. Its colorless, clear lens has a rectangular shape with a flat top, measuring 2.00mm x 2.70mm. The wide viewing angle of 140° makes it suitable for general indication in industrial controls, consumer electronics, and medical equipment. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Color | Blue |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 35mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 470nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 1210 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 2.70mm |
