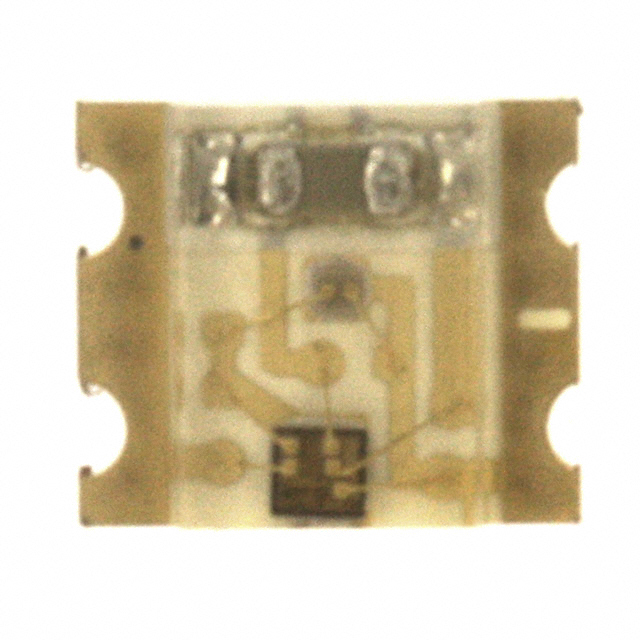

SML-DSP1210UPGC-TR
LED GREEN CLEAR 1210 SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lumex Opto/Components Inc. SML-DSP1210UPGC-TR is a green LED indication component in a 1210 (3225 Metric) surface mount package. This clear lens, rectangular LED with a flat top offers a typical forward voltage of 2V and a test current of 20mA, producing a luminous intensity of 40mcd. The component features a broad 140° viewing angle and a peak wavelength of 525nm. Its dimensions are 3.20mm L x 2.70mm W with a height not exceeding 1.10mm. Supplied on tape and reel, this component is suitable for applications in industrial automation, consumer electronics, and medical devices requiring reliable visual feedback.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 40mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 525nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 1210 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 2.70mm |
