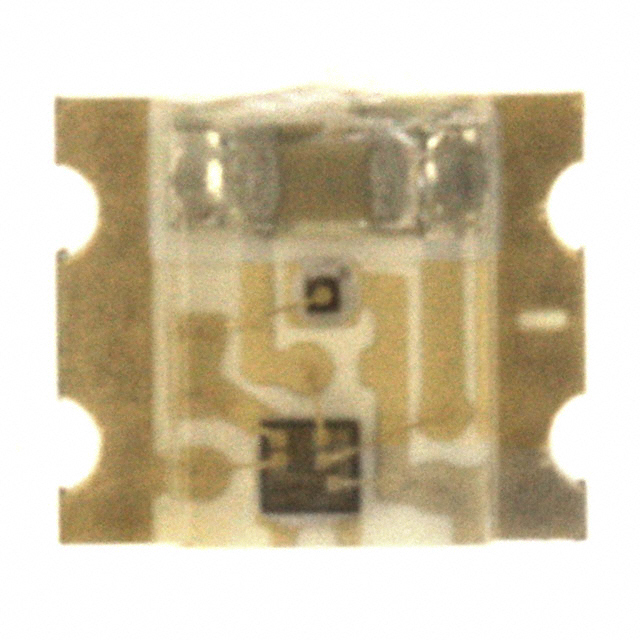

SML-DSP1210SIC-TR
LED RED CLEAR 1210 SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More
Lumex Opto/Components Inc. SML-DSP1210SIC-TR is a red LED for discrete indication. This 1210 (3225 Metric) SMD component features a clear lens with a flat top, measuring 2.00mm x 2.70mm. It operates with a typical forward voltage of 2V and a test current of 20mA, producing a millicandela rating of 40mcd. The LED offers a wide viewing angle of 140 degrees and emits light at a peak wavelength of 636nm. The SML-DSP1210SIC-TR is supplied in Tape & Reel (TR) packaging, suitable for surface mounting. Its dimensions are 3.20mm L x 2.70mm W with a maximum height of 1.10mm. This component finds application in various industrial and consumer electronics, including control panels and status indicators.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 40mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 636nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 1210 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 2.70mm |
