CCL-CRS10G
LED GREEN CLEAR SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Indication - Discrete
Quality Control: Learn More

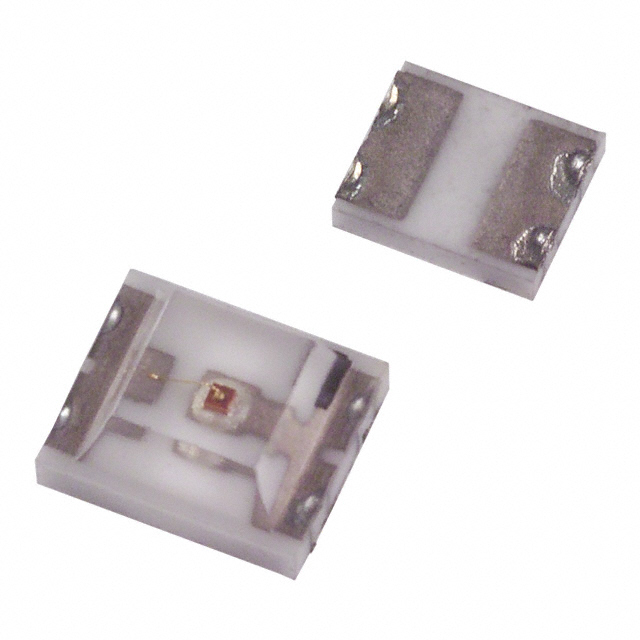

Lumex Opto/Components Inc. CCL-CRS10G is a green, clear surface-mount LED designed for indication applications. This discrete component features a 1208 (3020 Metric) package with a standard configuration. It operates with a typical forward voltage of 2.2V and a test current of 20mA, achieving a millicandela rating of 12mcd. The LED has a colorless, clear lens with a square, flat-top style, measuring 2.25mm. Its dimensions are 3.00mm in length and 2.54mm in width. The CCL-CRS10G offers a wide viewing angle of 180° and is supplied in Tape & Reel (TR) packaging. This component is suitable for use in industrial automation, consumer electronics, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1208 (3020 Metric) |
| Color | Green |
| Size / Dimension | 3.00mm L x 2.54mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 12mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 180° |
| Height (Max) | 1.20mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Square with Flat Top |
| Lens Size | 2.25mm |
