SSP-LXC04362S3A
LED 11MM RND 3LED-CLSTR 1RED2GRNManufacturer: Lumex Opto/Components Inc.
Categories: LED Dot Matrix and Cluster
Quality Control: Learn More

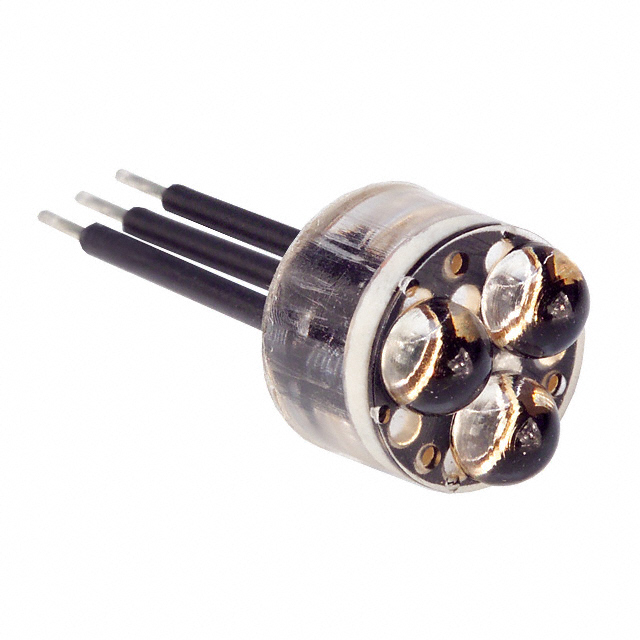

Lumex Opto/Components Inc. SSP-LXC04362S3A is a 3-round LED cluster module featuring a common anode internal connection. This electronic component is configured with one red LED and two green LEDs, offering distinct luminous intensity ratings of 2000mcd for red and 300mcd for green. The forward voltage for the red LED is typically 1.8V, while the green LEDs require 2.2V. With a diameter of 0.43 inches (11.00mm) and a height of 0.39 inches (9.90mm), this module is suitable for applications in industrial automation, medical equipment, and consumer electronics requiring clear visual indicators.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | |
| Color | 1 Red, 2 Green |
| Size / Dimension | 0.43"" Dia x 0.39"" H (11.00mm x 9.90mm) |
| Interface | - |
| Millicandela Rating | 300mcd Green, 2000mcd Red |
| Configuration | 3 Round |
| Voltage - Forward (Vf) (Typ) | 1.8V Red, 2.2V Green |
| Internal Connection | Common Anode |
| Packaging |
