SSP-LX6144A6UC
LED LUXLED RED 626NM SMDManufacturer: Lumex Opto/Components Inc.
Categories: LED Color Lighting
Quality Control: Learn More

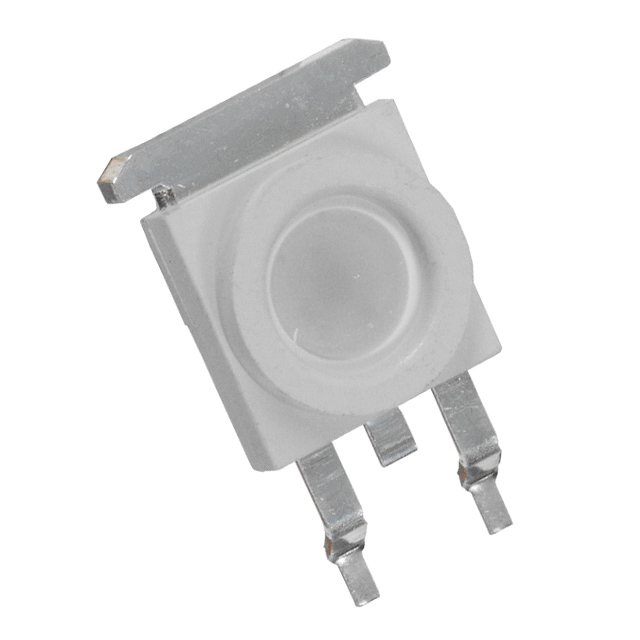

The Lumex Opto/Components Inc. LuxLED™ SSP-LX6144A6UC is a high-performance red LED designed for demanding lighting applications. This component features a typical luminous flux of 3lm and a wavelength of 626nm, ensuring a vibrant red output. Engineered for surface mounting with a 6-SMD, Flat Leads package, it offers a compact footprint of 0.441" L x 0.614" W (11.20mm x 15.60mm) with a seated height of 0.299" (7.60mm). The SSP-LX6144A6UC supports a maximum forward current of 120mA, with a typical forward voltage of 2.4V at 120mA test current. Its narrow 10° viewing angle makes it suitable for precise illumination tasks. The device achieves 10 lm/W at the specified test conditions. This LED is commonly utilized in industrial automation, signage, and automotive lighting systems. Supplied in tubes.
Additional Information
Series: LuxLED™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-SMD, Flat Leads |
| Color | Red |
| Wavelength | 626nm (Typ) |
| Size / Dimension | 0.441"" L x 0.614"" W (11.20mm x 15.60mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.4V |
| Current - Test | 120mA |
| Viewing Angle | 10° |
| Current - Max | 120mA |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 10 lm/W |
| Height - Seated (Max) | 0.299"" (7.60mm) |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 3lm (Typ) |
