SSF-LXH555ID
LED CBI 1.8MM RED RA PC MNTManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

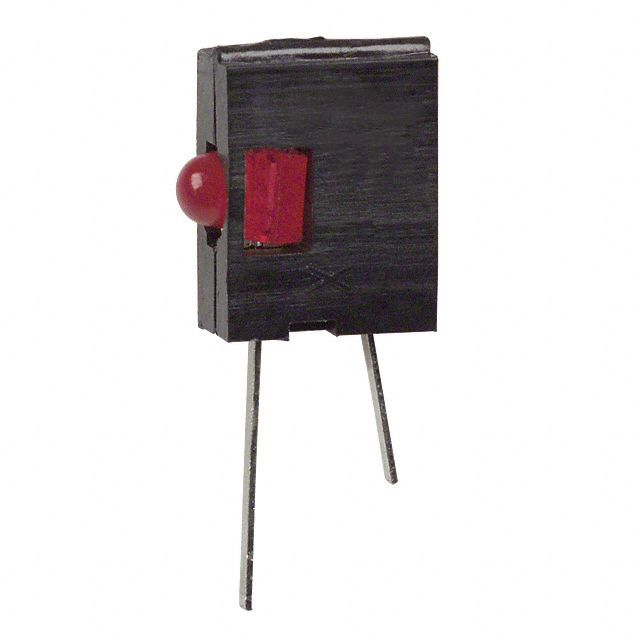

Lumex Opto/Components Inc. SSF-LXH555ID is a single, red diffused, tinted LED circuit board indicator. This component features a round, domed top lens with a 1.80mm diameter and a 60° viewing angle. It is designed for through-hole, right-angle mounting. The SSF-LXH555ID operates at a forward voltage of 2V and a forward current of 20mA, with a typical millicandela rating of 8mcd and a peak wavelength of 635nm. This component is commonly utilized in industrial automation, medical instrumentation, and consumer electronics for status indication on PCBs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red |
| Voltage Rating | 2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 8mcd |
| Configuration | Single |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 635nm |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
