SSF-LXH555GD
LED CBI 1.8MM GRN RAManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

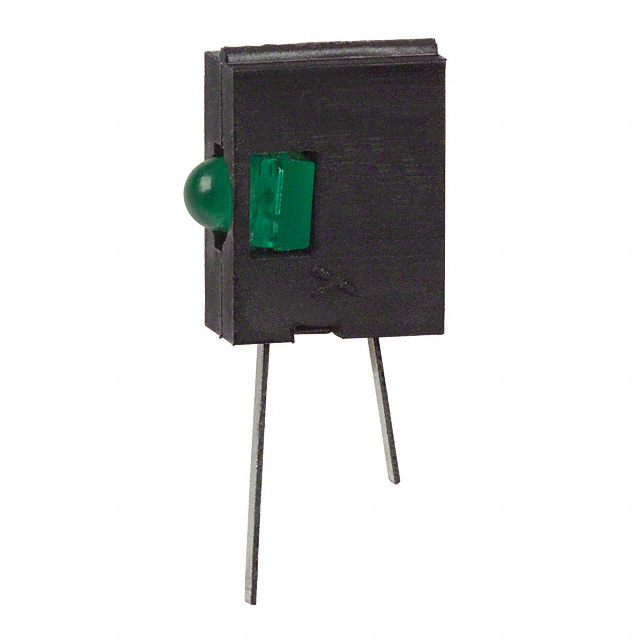

Lumex Opto/Components Inc. presents the SSF-LXH555GD, a single, green, diffused, and tinted LED Circuit Board Indicator. This through-hole component features a right-angle mounting configuration with a 1.80mm diameter round, domed top lens. Operating with a forward voltage of 2.1V and a forward current of 20mA, it delivers a typical millicandela rating of 8mcd. The component's peak wavelength is 565nm, providing a 60° viewing angle. This indicator is commonly employed in industrial automation, consumer electronics, and medical device applications requiring reliable visual feedback. The SSF-LXH555GD is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 8mcd |
| Configuration | Single |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 565nm |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
