SSF-LXH475GYWXXSBD
LED CBI 3MM QUD BLU/GRN/YL/BLANKManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
Lumex Opto/Components Inc. SSF-LXH475GYWXXSBD is a 4-element LED Circuit Board Indicator. This component features a vertical array of four individual LEDs, comprising one blue, one green, and one yellow LED, alongside a blank space. Each LED is housed in a 3mm (T-1) diffused, round with domed top lens, offering a 60° viewing angle. The blue LED operates at 4.5V, the green at 2.2V, and the yellow at 2.1V, all rated for 20mA forward current. Peak wavelengths are 430nm for blue, 565nm for green, and 585nm for yellow, with a typical millicandela rating of 30mcd for each illuminated element. This indicator is supplied in bulk packaging and is suitable for applications within the telecommunications and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Blue (x 1), Green, Yellow (x 1), Blank (x 2) |
| Voltage Rating | 4.5V Blue, 2.2V Green, 2.1V Yellow |
| Millicandela Rating | 30mcd |
| Configuration | 4 High |
| Viewing Angle | 60° |
| Lens Type | Diffused |
| Wavelength - Peak | 430nm, 565nm, 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy
SSF-LXH1071VLID
LED CBI 5MM RED VERT BOT ENTRY

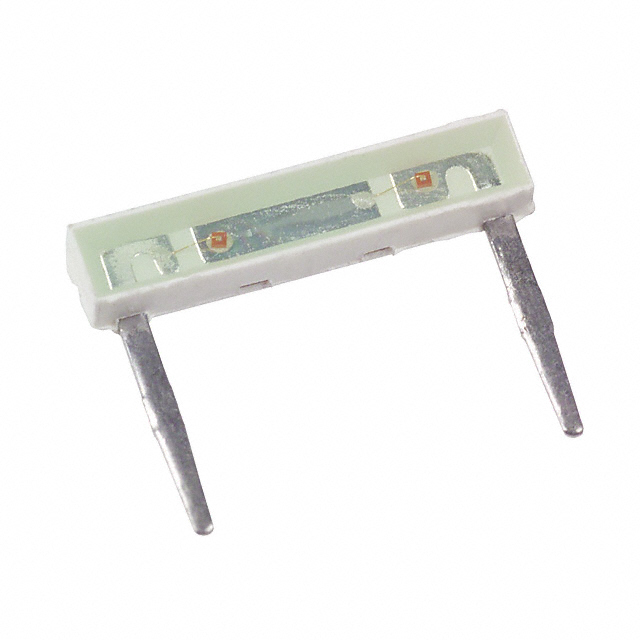

SSB-LX02GC
