SSF-LXH1071YD
LED CBI 5MM YELLOW RA PC MNTManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

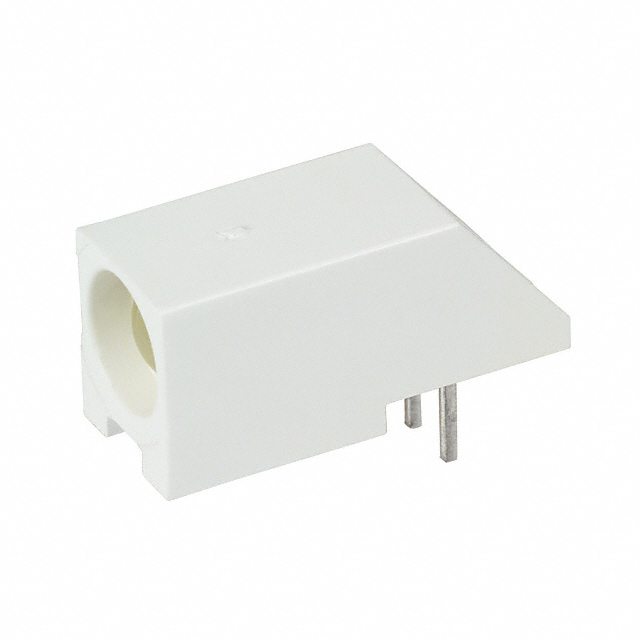

The Lumex Opto/Components Inc. SSF-LXH1071YD is a single, right-angle, through-hole LED circuit board indicator. This component features a diffused, tinted, 5mm (T-1 3/4) round, domed top lens in yellow. It operates with a forward voltage rating of 2.1V and a current rating of 20mA, providing a typical millicandela rating of 20mcd at a peak wavelength of 585nm. The viewing angle is 80°. This component is commonly utilized in industrial control systems, telecommunications equipment, and consumer electronics for status indication. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Yellow |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 20mcd |
| Configuration | Single |
| Viewing Angle | 80° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
