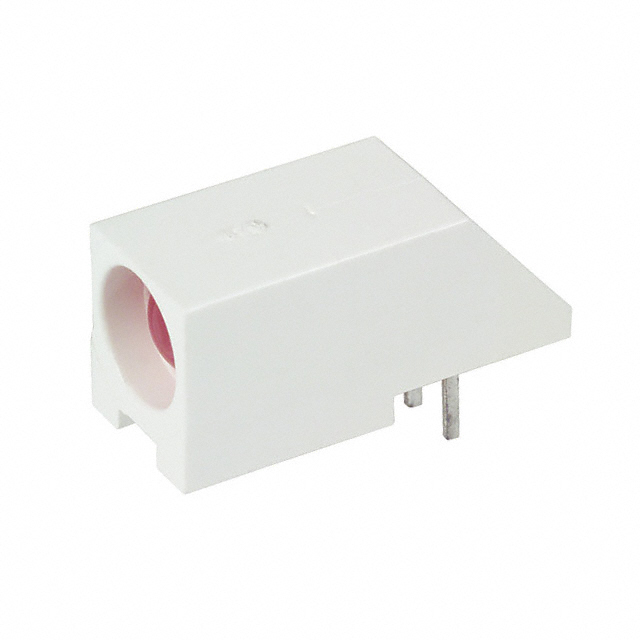

SSF-LXH1071ID
LED CBI 5MM RED RA PC MNTManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
Lumex Opto/Components Inc. SSF-LXH1071ID is a single, red diffused, tinted LED circuit board indicator. This component features a 5mm (T-1 3/4) round, domed top lens, with a 2.1V forward voltage and a 20mA current rating. It offers a typical luminous intensity of 40mcd and a 60° viewing angle. The SSF-LXH1071ID is designed for through-hole mounting with a right-angle orientation. This LED indicator is suitable for applications in industrial automation, consumer electronics, and medical equipment where reliable visual feedback is critical. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 40mcd |
| Configuration | Single |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 635nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
