SSF-LXH103HGW
LED CBI 3MM GRN/RED RAManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

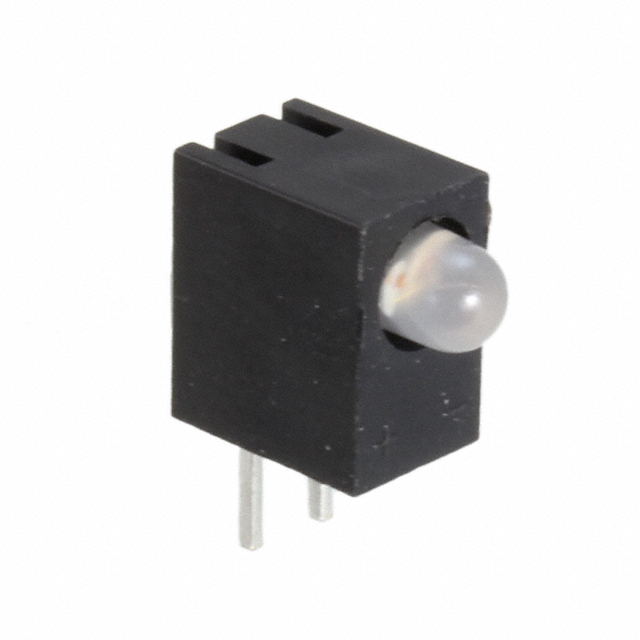

Lumex Opto/Components Inc. SSF-LXH103HGW is a single, diffused LED Circuit Board Indicator featuring a 3mm, T-1 lens size with a distinct right-angle mounting configuration. This component integrates both a green and a red LED, each with a typical forward voltage of 2.2V for green and 2V for red, and a maximum continuous forward current of 25mA for both. The green LED emits at a peak wavelength of 565nm with a millicandela rating of 8mcd, while the red LED operates at 700nm with a 4mcd rating. The diffused, white lens style with a domed top provides a viewing angle of 60°. This component is commonly utilized in industrial automation, medical instrumentation, and consumer electronics for status indication and panel illumination.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 25mA Green, 25mA Red |
| Color | Green, Red |
| Voltage Rating | 2.2V Green, 2V Red |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 8mcd Green, 4mcd Red |
| Configuration | Single |
| Viewing Angle | 60° |
| Lens Type | Diffused, White |
| Wavelength - Peak | 565nm, 700nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
