SSF-LXH101ID-01
LED CBI 5MM RED RA PC MNTManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

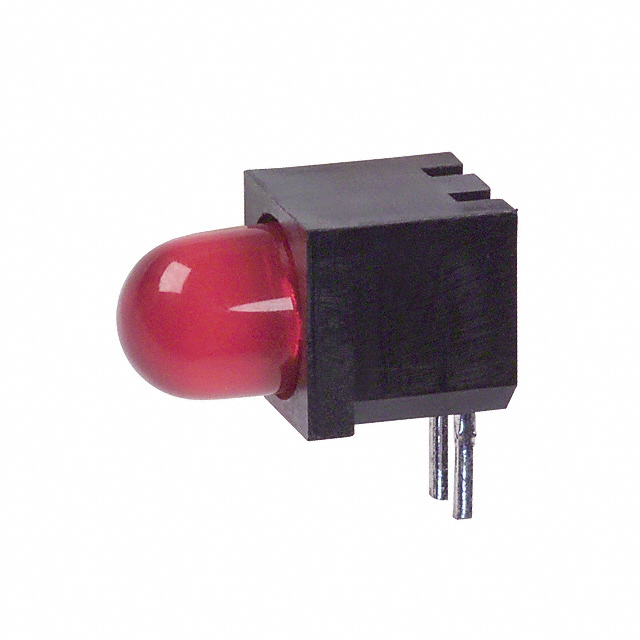

Lumex Opto/Components Inc. SSF-LXH101ID-01 is a single, red diffused, tinted LED circuit board indicator. This component features a 5mm (T-1 3/4) round lens with a domed top and a right-angle, through-hole mounting configuration for efficient PCB integration. Operating at a forward voltage of 2V and a current of 20mA, it achieves a peak wavelength of 635nm and a millicandela rating of 40mcd, with a viewing angle of 60 degrees. The SSF-LXH101ID-01 is commonly employed in industrial automation, medical equipment, and consumer electronics where reliable visual status indication is critical. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red |
| Voltage Rating | 2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 40mcd |
| Configuration | Single |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 635nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
