SSF-LXH100MSRD
LED CBI 5MM RED RA PC MNTManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

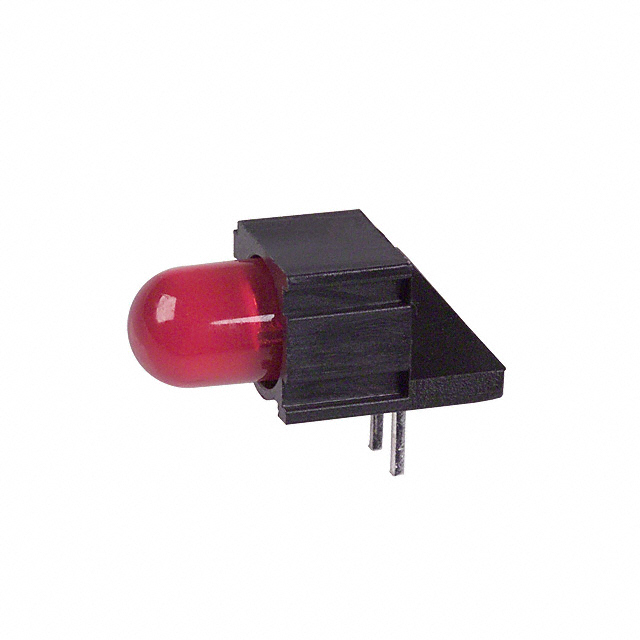

Lumex Opto/Components Inc. SSF-LXH100MSRD is a single-color, red LED circuit board indicator. This component features a diffused, tinted lens with a round, domed top, measuring 5mm (T-1 3/4) in diameter. It is designed for through-hole mounting with a right-angle configuration, facilitating efficient PCB layout. The LED operates at a forward voltage of 1.8V and a typical forward current of 20mA, achieving a millicandela rating of 100mcd at a peak wavelength of 660nm. The viewing angle is rated at 60°. This indicator is commonly utilized in industrial automation, consumer electronics, and medical device applications requiring clear visual feedback. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red |
| Voltage Rating | 1.8V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 100mcd |
| Configuration | Single |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 660nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
