SSA-LXB8825
LED CBI 101-SEG RED THROUGH HOLEManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

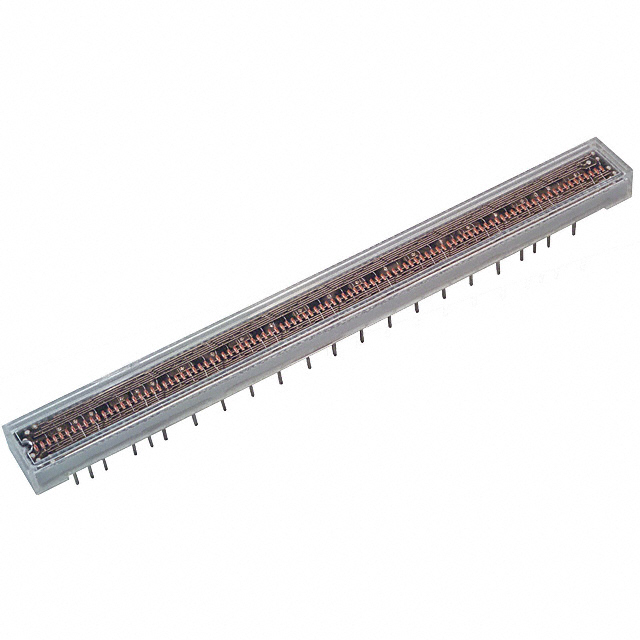

Lumex Opto/Components Inc. SSA-LXB8825 is a through-hole mounted LED Circuit Board Indicator featuring a 101-segment bar graph configuration within a Single In-line Package (SIP). This component emits a bright red light with a peak wavelength of 635nm. Each LED element operates at a typical forward voltage of 2.1V and a forward current of 25mA. The clear, rectangular lens with a flat top provides a wide viewing angle suitable for status indication and visual feedback in various electronic applications. Industries utilizing this component include industrial control systems, test and measurement equipment, and consumer electronics requiring clear, multi-segment visual displays. The SSA-LXB8825 is supplied in bulk packaging for efficient integration into high-volume manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 25mA |
| Color | Red (x 101) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole |
| Millicandela Rating | - |
| Configuration | Bar - 101 Wide, SIP |
| Viewing Angle | - |
| Lens Type | Clear |
| Wavelength - Peak | 635nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
