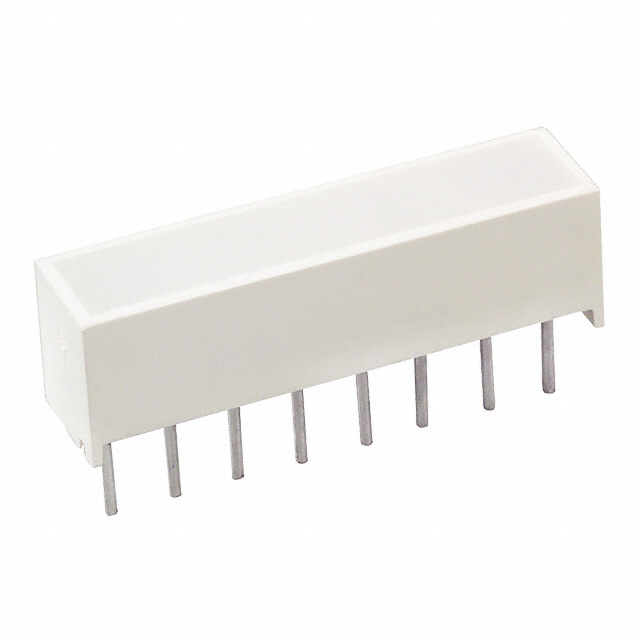

SSA-LXB10G6Y3I1W
LED CBI 5.08X1.74MM 10SEG G/R/YManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green, Red, Yellow Diffused 2.2V Green, 2V Red, 2.1V Yellow 20mA Green, 20mA Red, 20mA Yellow Rectangle with Flat Top 5.08mm x 1.74mm Through Hole
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Current | 20mA Green, 20mA Red, 20mA Yellow |
| Color | Green, Red, Yellow |
| Voltage Rating | 2.2V Green, 2V Red, 2.1V Yellow |
| Mounting Type | Through Hole |
| Millicandela Rating | 8mcd Green, 8mcd Red, 8mcd Yellow |
| Configuration | Bar - 10 Wide, DIP |
| Viewing Angle | 160° |
| Lens Type | Diffused |
| Wavelength - Peak | 565nm, 635nm, 585nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.08mm x 1.74mm |
