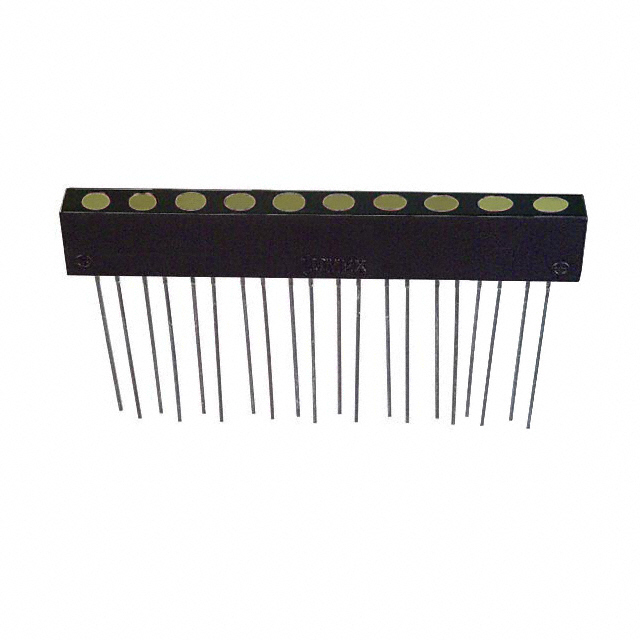

SSA-LXB102YD
LED CBI 3MM 10-SEG YELLOW VERTManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
Lumex Opto/Components Inc. SSA-LXB102YD is a 10-segment LED circuit board indicator. This component features diffused, tinted yellow LEDs, each with a 3mm (T-1) round, domed top lens. The forward voltage is rated at 2.1V, with a typical operating current of 30mA per segment. The viewing angle is 80°, and each segment provides a millicandela rating of 8mcd. The peak wavelength for the yellow output is 585nm. Designed for through-hole mounting, this indicator is suitable for applications in industrial controls, instrumentation, and consumer electronics where multi-segment visual feedback is required. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 30mA |
| Color | Yellow (x 10) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole |
| Millicandela Rating | 8mcd |
| Configuration | 10 Wide |
| Viewing Angle | 80° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
