SSA-LXB102GD
LED CBI 3MM 10-SEG GREEN VERTManufacturer: Lumex Opto/Components Inc.
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

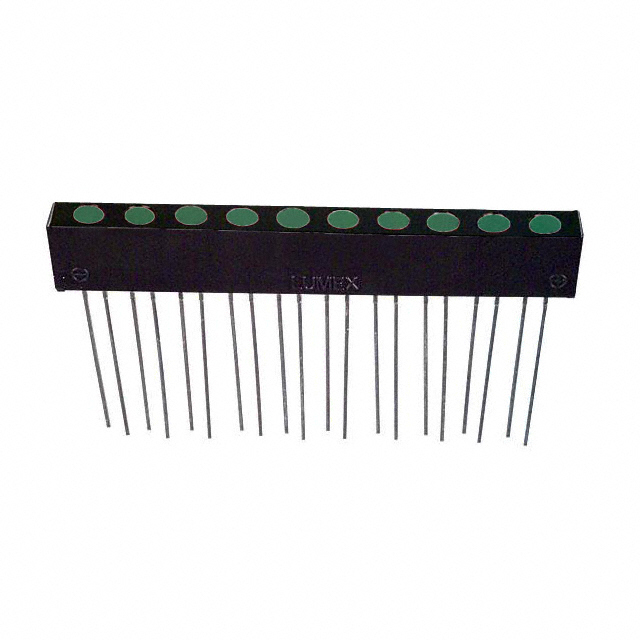

Lumex Opto/Components Inc. SSA-LXB102GD is a 10-segment LED Circuit Board Indicator. This component features ten individual green LEDs, each with a diffused, tinted lens measuring 3.00mm in diameter and a round with flat top style. The forward voltage for each LED is rated at 2.21V, with a typical forward current of 25mA. The peak wavelength is 565nm, and the millicandela rating is 8mcd. Designed for through-hole mounting, this indicator offers an 80° viewing angle. It is commonly utilized in industrial control systems, instrumentation, and automotive applications where clear visual status indication is critical. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 25mA |
| Color | Green (x 10) |
| Voltage Rating | 2.21V |
| Mounting Type | Through Hole |
| Millicandela Rating | 8mcd |
| Configuration | 10 Wide |
| Viewing Angle | 80° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 565nm |
| Lens Style | Round with Flat Top |
| Lens Size | 3.00mm Dia |
