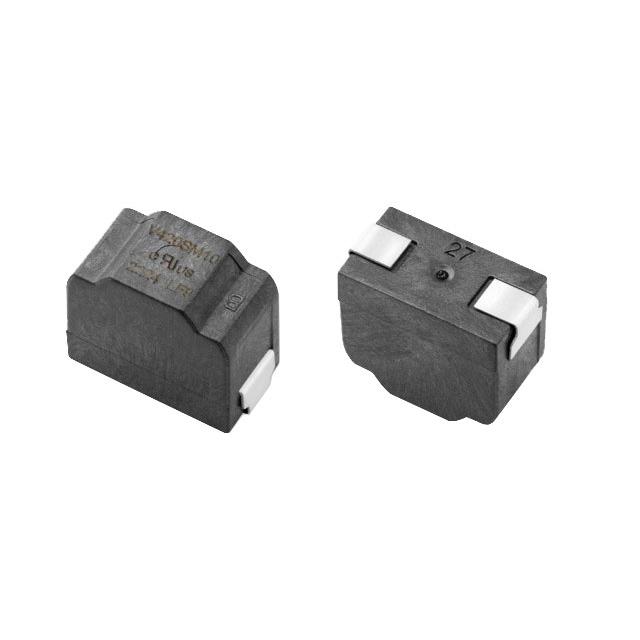

V275SM10
SMD VARISTORManufacturer: Littelfuse Inc.
Categories: Varistors, MOVs
Quality Control: Learn More
The Littelfuse Inc. SM10 series V275SM10 is a 1-circuit, surface-mount varistor designed for transient voltage suppression. This component features a maximum AC voltage rating of 275 V and a maximum DC voltage rating of 350 V. It offers a robust surge current capability of 5 kA and an energy absorption capacity of 83 J. The typical varistor voltage is 430 V, with a minimum of 387 V and a maximum of 473 V. The V275SM10 has a capacitance of 420 pF at 1 kHz and operates within an ambient temperature range of -40°C to 125°C. It is housed in a 2-SMD, J-Lead package and supplied on tape and reel. This varistor is commonly utilized in industrial power supplies, automotive electronics, and telecommunications equipment for protection against voltage transients.
Additional Information
Series: SM10RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Mounting Type | Surface Mount, MLCV |
| Current - Surge | 5 kA |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Energy | 83J |
| Number of Circuits | 1 |
| Varistor Voltage (Max) | 473 V |
| Varistor Voltage (Min) | 387 V |
| Varistor Voltage (Typ) | 430 V |
| Maximum AC Volts | 275 V |
| Maximum DC Volts | 350 V |
| Capacitance @ Frequency | 420 pF @ 1 kHz |
