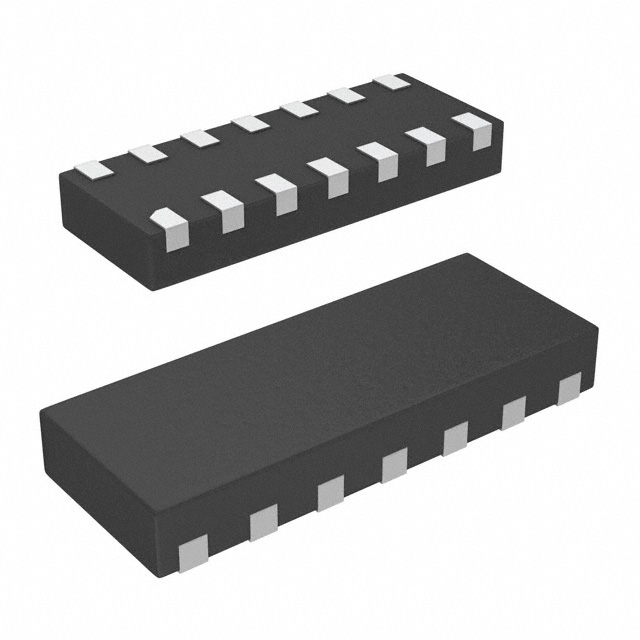

productimage

SP3012-06UTG

TVS DIODE 5VWM 7VC 14UDFN

Manufacturer: Littelfuse Inc.

Categories: TVS Diodes

Quality Control: Learn More

Littelfuse Inc. SP3012 series SPA® TVS Diode, part number SP3012-06UTG, offers robust transient voltage suppression for demanding applications. This AEC-Q101 qualified device features 6 unidirectional channels and a 5V reverse standoff voltage. Its low capacitance of 0.5pF at 1MHz makes it suitable for high-speed data lines. The device provides effective protection with a typical clamping voltage of 7V at a peak pulse current of 4A (8/20µs). Engineered for automotive environments, it operates across a temperature range of -40°C to 125°C. The SP3012-06UTG is housed in a compact 14-UFDFN (3.5x1.35) surface mount package, supplied on tape and reel. This steering diode configuration provides rail-to-rail protection, ideal for power line and signal line applications.

Additional Information

Series: SP3012, SPA®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:
Technical Details:
PackagingTape & Reel (TR)
Package / Case14-UFDFN
Mounting TypeSurface Mount
TypeSteering (Rail to Rail)
Operating Temperature-40°C ~ 125°C (TJ)
Applications-
Capacitance @ Frequency0.5pF @ 1MHz
Current - Peak Pulse (10/1000µs)4A (8/20µs)
Voltage - Reverse Standoff (Typ)5V (Max)
Supplier Device Package14-UDFN (3.5x1.35)
Unidirectional Channels6
Voltage - Breakdown (Min)-
Voltage - Clamping (Max) @ Ipp7V (Typ)
Power - Peak Pulse-
Power Line ProtectionYes
GradeAutomotive
QualificationAEC-Q101
