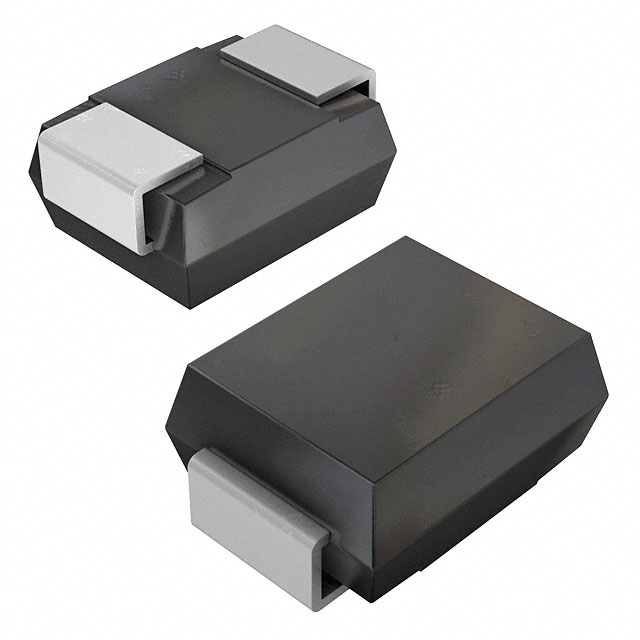

P6SMB56AT3G
TVS DIODE 47.8VWM 77VC SMBManufacturer: Littelfuse Inc.
Categories: TVS Diodes
Quality Control: Learn More
77V Clamp 7.8A Ipp Tvs Diode Surface Mount SMB
Additional Information
Series: P6SMBRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 365pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 7.8A |
| Voltage - Reverse Standoff (Typ) | 47.8V |
| Supplier Device Package | SMB |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 53.2V |
| Voltage - Clamping (Max) @ Ipp | 77V |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
