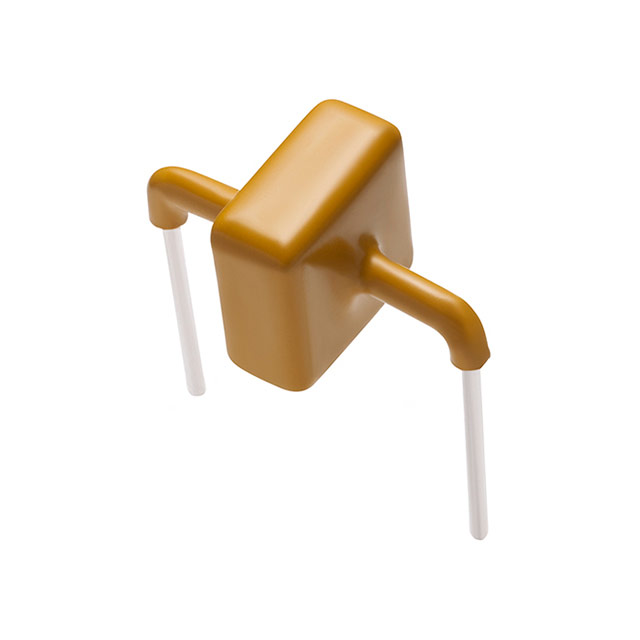

AK6-430C-Y
TVS DIODE 430VWM 625VC AXIALManufacturer: Littelfuse Inc.
Categories: TVS Diodes
Quality Control: Learn More
625V Clamp 6000A (6kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
Additional Information
Series: AK6-YRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 1000pF @ 10kHz |
| Current - Peak Pulse (10/1000µs) | 6000A (6kA) (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 430V |
| Supplier Device Package | Axial |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 440V |
| Voltage - Clamping (Max) @ Ipp | 625V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
