8.0SMDJ40CA
TVS DIODE 40VWM 64.5VC DO214ABManufacturer: Littelfuse Inc.
Categories: TVS Diodes
Quality Control: Learn More

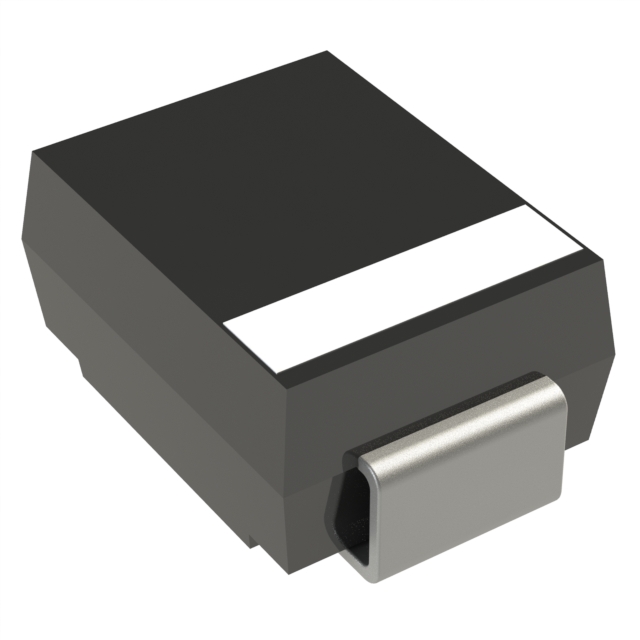

64.5V Clamp 124.1A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Additional Information
Series: 8.0SMDJRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | Telecom |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 124.1A |
| Voltage - Reverse Standoff (Typ) | 40V |
| Supplier Device Package | DO-214AB (SMCJ) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 44.4V |
| Voltage - Clamping (Max) @ Ipp | 64.5V |
| Power - Peak Pulse | 8000W (8kW) |
| Power Line Protection | No |
