QJ4008DH3TP
TRIAC ALTERNISTOR 400V 8A TO252Manufacturer: Littelfuse Inc.
Categories: TRIACs
Quality Control: Learn More

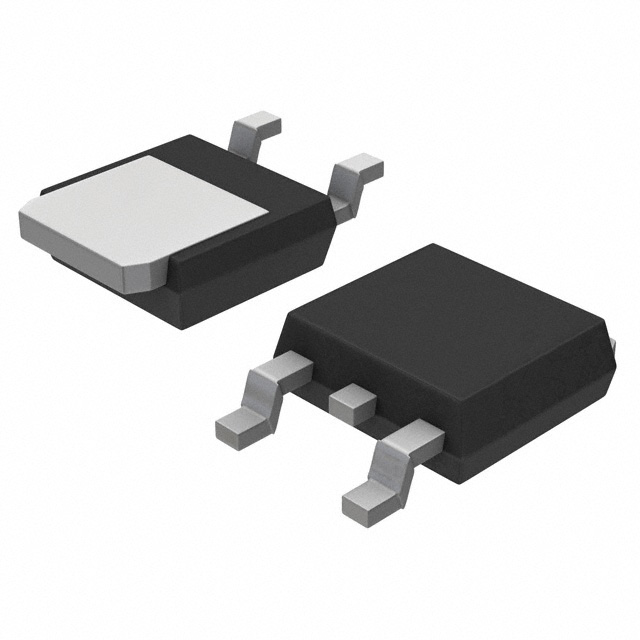

TRIAC Alternistor - Snubberless 400 V 8 A Surface Mount TO-252 (DPAK)
Additional Information
Series: QJxx08xHxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 25 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 70A, 84A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-252 (DPAK) |
| Current - On State (It (RMS)) (Max) | 8 A |
| Voltage - Off State | 400 V |
