Q8015R5TP
TRIAC 800V 15A TO220ABManufacturer: Littelfuse Inc.
Categories: TRIACs
Quality Control: Learn More
TRIAC Standard 800 V 15 A Through Hole TO-220AB
Additional Information
Series: Qxx15xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 70 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 167A, 200A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Supplier Device Package | TO-220AB |
| Current - On State (It (RMS)) (Max) | 15 A |
| Voltage - Off State | 800 V |
Request a Quote
Clients Also Buy

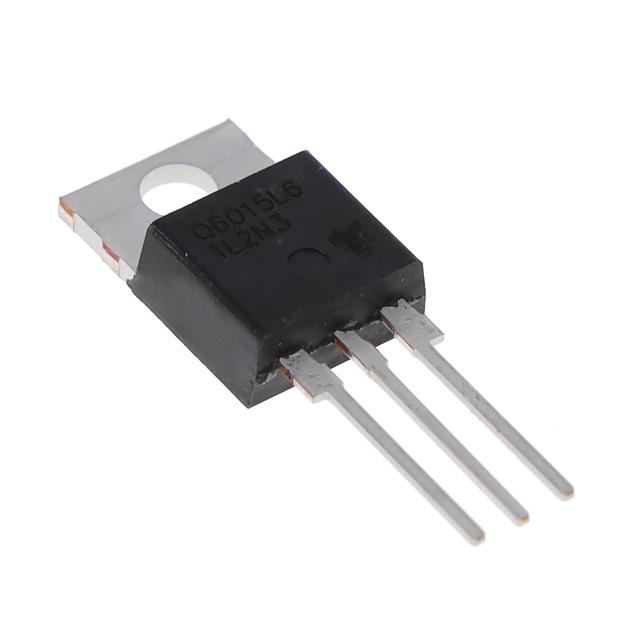

Q6015L6TP
TRIAC 600V 15A ITO220AB

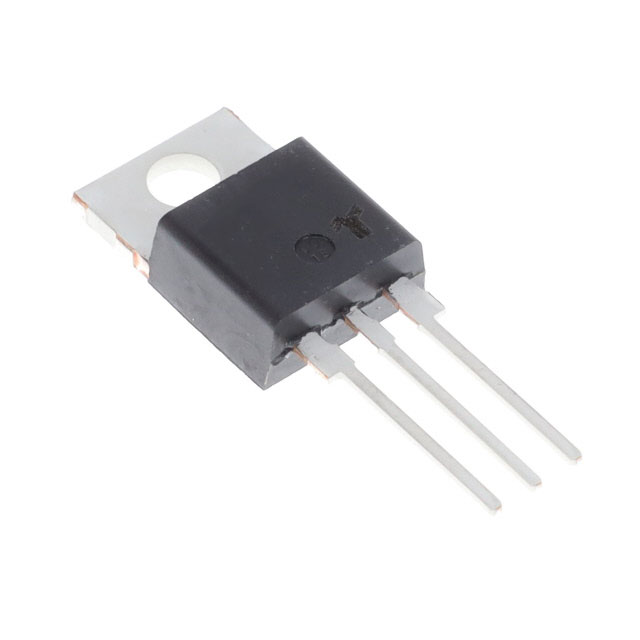

QK015R5TP
