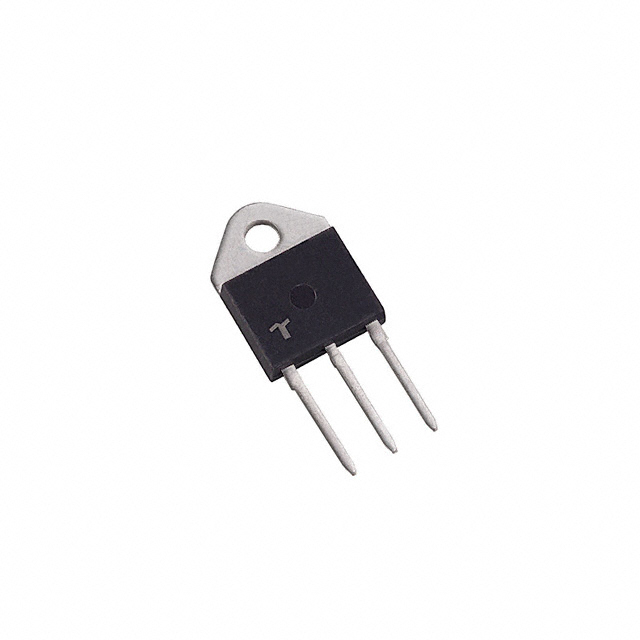

Q6040K7TP
TRIAC ALTERNISTOR 600V 40A TO218Manufacturer: Littelfuse Inc.
Categories: TRIACs
Quality Control: Learn More
TRIAC Alternistor - Snubberless 600 V 40 A Through Hole TO-218 Isolated Tab
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-218-3 Isolated Tab, TO-218AC |
| Mounting Type | Through Hole |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Gate Trigger (Igt) (Max) | 100 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 335A, 400A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Supplier Device Package | TO-218 Isolated Tab |
| Current - On State (It (RMS)) (Max) | 40 A |
| Voltage - Off State | 600 V |
