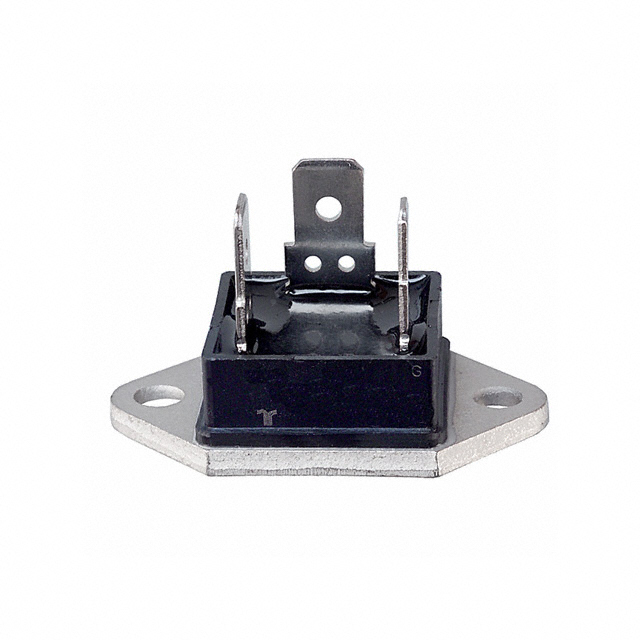

Q6025P5
TRIAC 600V 25A TO3/TO239Manufacturer: Littelfuse Inc.
Categories: TRIACs
Quality Control: Learn More
Littelfuse Inc. TRIAC, part number Q6025P5, is a standard TRIAC with a 600V off-state voltage rating and a 25A RMS on-state current capability. This component features a 50mA maximum gate trigger current (Igt) and a 50mA maximum holding current (Ih). Its non-repetitive surge current handling is 220A at 50Hz and 250A at 60Hz (Itsm). The Q6025P5 is housed in a FastPAK, TO-3 Base package for chassis mounting and operates within a temperature range of -25°C to 125°C. This device is suitable for AC power control applications in various industries, including industrial automation and motor control.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | FastPAK, TO-3 Base |
| Mounting Type | Chassis Mount |
| Triac Type | Standard |
| Configuration | Single |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 220A, 250A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-3/TO-239 (Fastpak) |
| Current - On State (It (RMS)) (Max) | 25 A |
| Voltage - Off State | 600 V |
