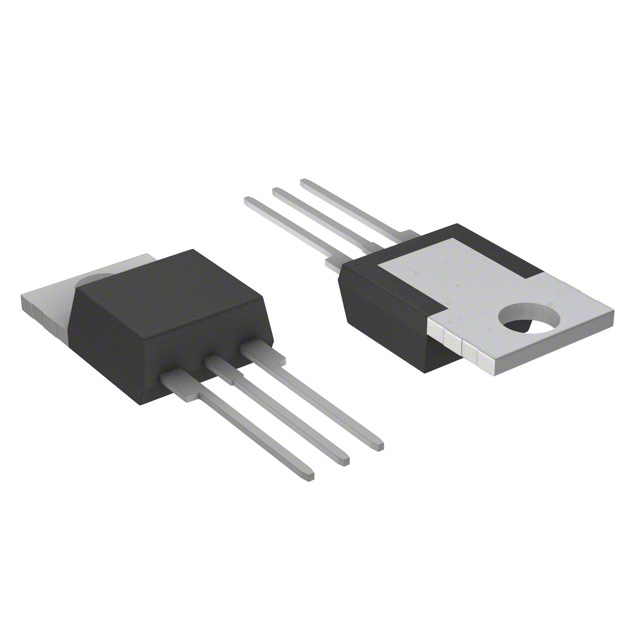

Q4016RH667
TRIAC ALTERNISTOR 400V 16A TO220Manufacturer: Littelfuse Inc.
Categories: TRIACs
Quality Control: Learn More
Littelfuse Inc. Q4016RH667 is a single TRIAC Alternistor with snubberless operation. This component offers a repetitive peak off-state voltage (VDRM) of 400V and a continuous on-state RMS current (IT(RMS)) of 16A. Designed for through-hole mounting in a TO-220 package with a non-isolated tab, it features a gate trigger current (IGT) of 80mA maximum and a holding current (IH) of 70mA maximum. The Q4016RH667 exhibits a non-repetitive surge current of 167A at 50Hz and 200A at 60Hz. Operating within a temperature range of -40°C to 125°C (TJ), this device is suitable for applications in power control, motor control, and lighting control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 70 mA |
| Current - Gate Trigger (Igt) (Max) | 80 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 167A, 200A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-220 Non-Isolated Tab |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Off State | 400 V |
