Q4006LH4
TRIAC ALTERNISTOR 400V 6A TO220Manufacturer: Littelfuse Inc.
Categories: TRIACs
Quality Control: Learn More
Littelfuse Inc. TRIAC Alternistor, Q4006LH4, offers robust control for AC power switching applications. This single-phase, snubberless TRIAC is rated for 400V off-state voltage and an RMS on-state current of 6A. Key parameters include a maximum gate trigger current (Igt) of 35mA and a maximum holding current (Ih) of 35mA, with a gate trigger voltage (Vgt) not exceeding 1.3V. Its non-repetitive surge current handling is 80A at 50Hz and 85A at 60Hz. Designed for through-hole mounting, the Q4006LH4 features a TO-220 isolated tab package, facilitating efficient thermal management. Operating across a temperature range of -40°C to 125°C (TJ), this component is suitable for demanding environments, including industrial controls, motor speed regulation, and power supply applications where reliable AC switching is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |

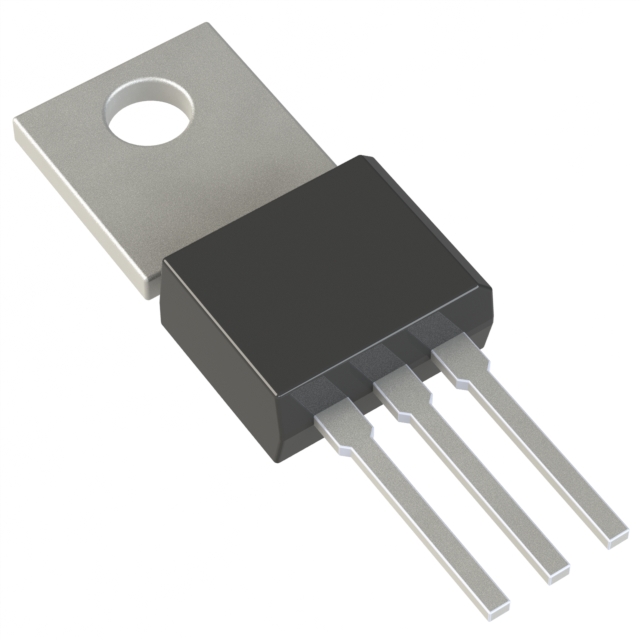

| Package / Case | TO-220-3 Isolated Tab |
| Mounting Type | Through Hole |
| Triac Type | Alternistor - Snubberless |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 35 mA |
| Current - Gate Trigger (Igt) (Max) | 35 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 80A, 85A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | TO-220 Isolated Tab |
| Current - On State (It (RMS)) (Max) | 6 A |
| Voltage - Off State | 400 V |
