L2N3RP
TRIAC SENS GATE 200V 1A DO214Manufacturer: Littelfuse Inc.
Categories: TRIACs
Quality Control: Learn More

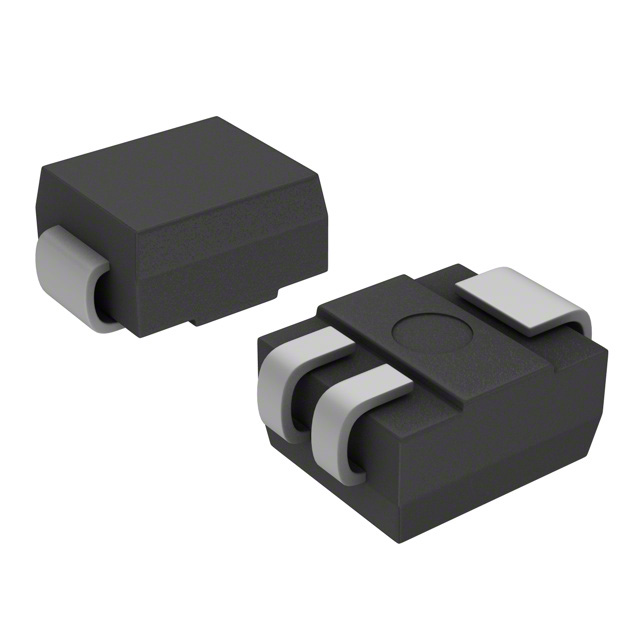

Littelfuse Inc. L2N3RP is a single TRIAC component featuring sensitive gate triggering for precise control. This device offers a 200V off-state voltage and a 1A RMS on-state current capability. It is housed in a DO-214AA SMB (3 Leads), Compak package, suitable for surface mount applications. The L2N3RP exhibits a maximum gate trigger current (Igt) of 3 mA and a maximum holding current (Ih) of 5 mA, with a gate trigger voltage (Vgt) of 1.3V. It is rated for non-repetitive surge currents of 16.7A at 50Hz and 20A at 60Hz. Operating within a temperature range of -40°C to 125°C (TJ), this TRIAC is commonly utilized in power control applications across various industries, including consumer electronics, industrial automation, and lighting control. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB (3 Leads), Compak |
| Mounting Type | Surface Mount |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 3 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16.7A, 20A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | DO-214 3L |
| Current - On State (It (RMS)) (Max) | 1 A |
| Voltage - Off State | 200 V |
