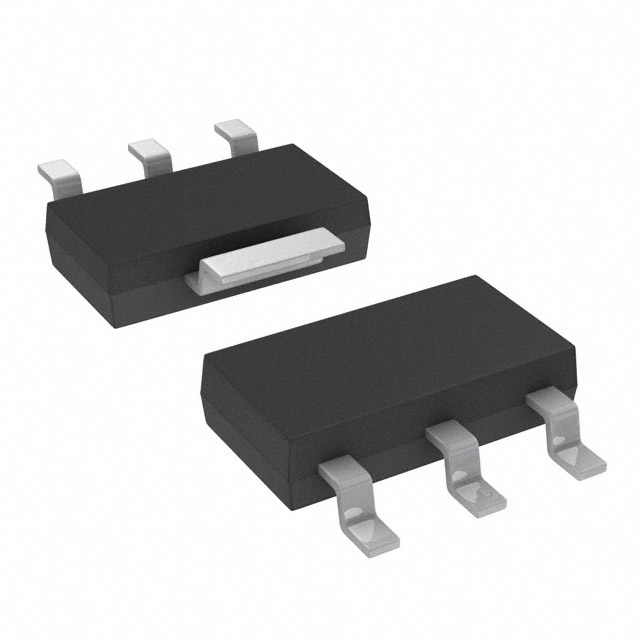

L0109MTRP
TRIAC SENS GATE 600V 1A SOT223Manufacturer: Littelfuse Inc.
Categories: TRIACs
Quality Control: Learn More
TRIAC Logic - Sensitive Gate 600 V 1 A Surface Mount SOT-223
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-261-4, TO-261AA |
| Mounting Type | Surface Mount |
| Triac Type | Logic - Sensitive Gate |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 10 mA |
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A, 12A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Supplier Device Package | SOT-223 |
| Current - On State (It (RMS)) (Max) | 1 A |
| Voltage - Off State | 600 V |
Request a Quote
Clients Also Buy

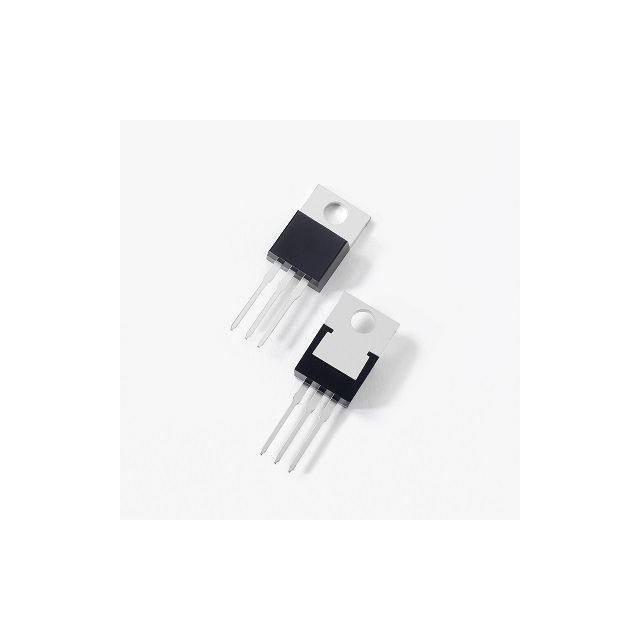

Q6015L556
