CPC1983Y
SSR RELAY SPST-NO 500MA 0-600VManufacturer: Littelfuse Inc.
Categories: Solid State Relays (SSR)
Quality Control: Learn More

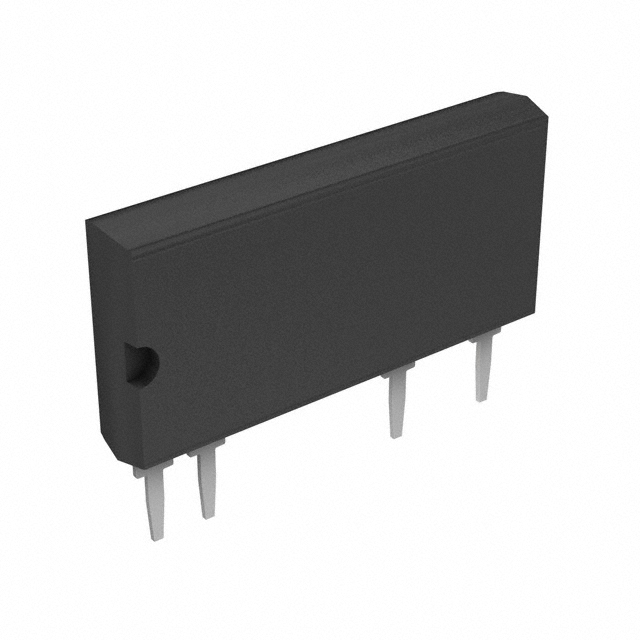

Littelfuse Inc. OptoMOS® CPC series CPC1983Y is a Solid State Relay offering a Single-Pole, Single-Throw Normally Open (SPST-NO) configuration. This 4-lead, 8-SIP device handles a load current of up to 500 mA and features a maximum on-state resistance of 6 Ohms. The relay operates from a DC input voltage of 1.2 VDC and is rated for a load voltage range of 0 V to 600 V. Designed for through-hole mounting, it is suitable for applications within the industrial automation, medical equipment, and telecommunications sectors. The CPC1983Y is supplied in tube packaging and holds approvals from CSA, TUV, and UL. Its operating temperature range is -40°C to 85°C.
Additional Information
Series: CPC, OptoMOS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SIP, 4 Leads |
| Output Type | DC |
| Mounting Type | Through Hole |
| Voltage - Input | 1.2VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Load Current | 500 mA |
| Approval Agency | CSA, TUV, UL |
| Supplier Device Package | 4-SIP |
| Grade | - |
| Voltage - Load | 0 V ~ 600 V |
| On-State Resistance (Max) | 6 Ohms |
| Qualification | - |
