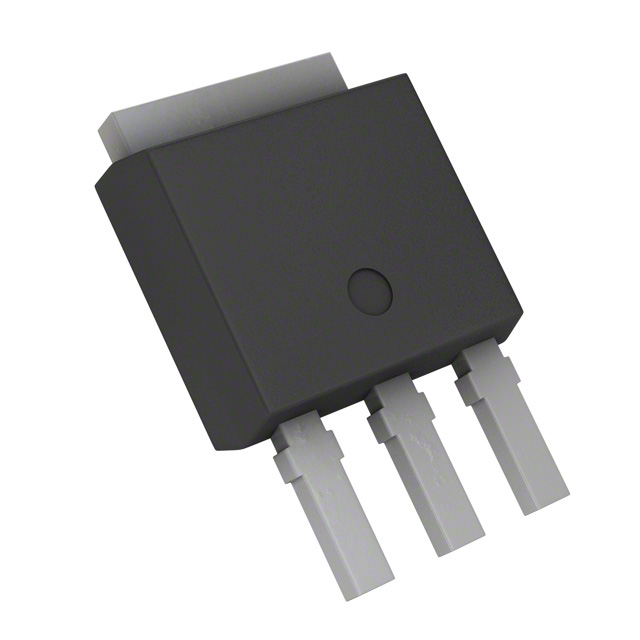

IXTU4N70X2
MOSFET N-CH 700V 4A TO251Manufacturer: Littelfuse Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 700 V 4A (Tc) 80W (Tc) Through Hole TO-251-3
Additional Information
Series: Ultra X2RoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-251-3 Stub Leads, IPAK |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Rds On (Max) @ Id, Vgs | 850mOhm @ 2A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 80W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Supplier Device Package | TO-251-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 700 V |
| Gate Charge (Qg) (Max) @ Vgs | 11.8 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 386 pF @ 25 V |
