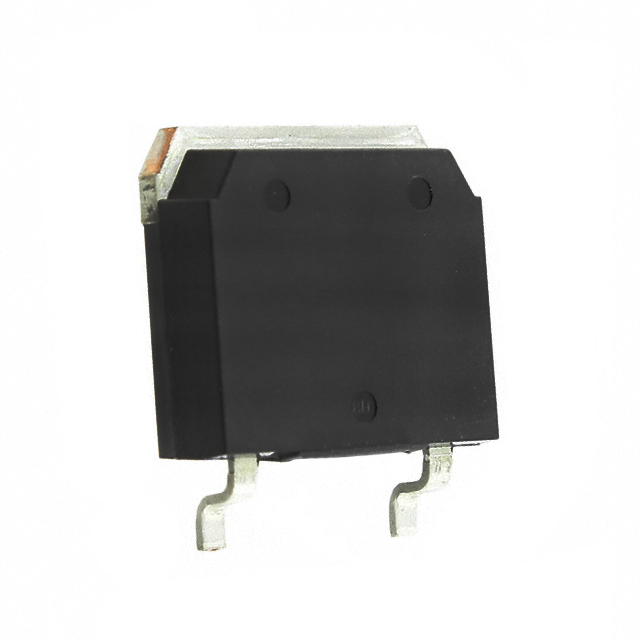

IXTT110N10L2-TRL
MOSFET N-CH 100V 110A TO268Manufacturer: Littelfuse Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 110A (Tc) 600W (Tc) Surface Mount TO-268 (IXTT)
Additional Information
Series: Linear L2™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 110A (Tc) |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 55A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 600W (Tc) |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Supplier Device Package | TO-268 (IXTT) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 260 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10500 pF @ 25 V |
Request a Quote
