IXFQ8N85X
MOSFET N-CH 850V 8A TO3PManufacturer: Littelfuse Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 850 V 8A (Tc) 200W (Tc) Through Hole TO-3P
Additional Information
Series: HiPerFET™, Ultra XRoHS Status: ROHS3 CompliantManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-3P-3, SC-65-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tc) |
| Rds On (Max) @ Id, Vgs | 850mOhm @ 4A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 200W (Tc) |
| Vgs(th) (Max) @ Id | 5.5V @ 250µA |
| Supplier Device Package | TO-3P |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 850 V |
| Gate Charge (Qg) (Max) @ Vgs | 17 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 654 pF @ 25 V |
Request a Quote
Clients Also Buy
IXFP8N85X
MOSFET N-CH 850V 8A TO220AB

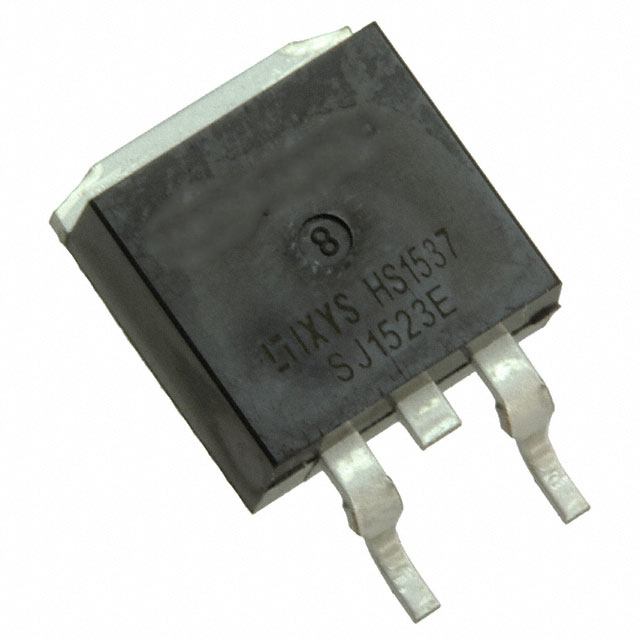

IXFY4N85X
