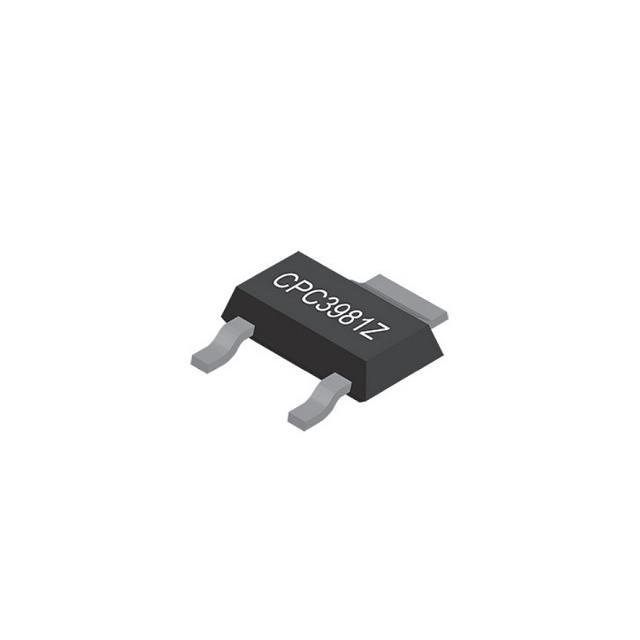

CPC3981ZTR
MOSFET N-CH DEP 800V 45OH SOT223Manufacturer: Littelfuse Inc.
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 800 V 100mA 2.25W (Ta) Surface Mount SOT-223-2L
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-261-3 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100mA |
| Rds On (Max) @ Id, Vgs | 45Ohm @ 100mA, 0V |
| FET Feature | Depletion Mode |
| Power Dissipation (Max) | 2.25W (Ta) |
| Vgs(th) (Max) @ Id | 3.1V @ 1µA |
| Supplier Device Package | SOT-223-2L |
| Drive Voltage (Max Rds On, Min Rds On) | 0V |
| Vgs (Max) | ±15V |
| Drain to Source Voltage (Vdss) | 800 V |
| Input Capacitance (Ciss) (Max) @ Vds | 105 pF @ 25 V |
