LSIC2SD170B25
DIODE SIL CARB 1.7KV 70A TO247-2Manufacturer: Littelfuse Inc.
Categories: Single Diodes
Quality Control: Learn More

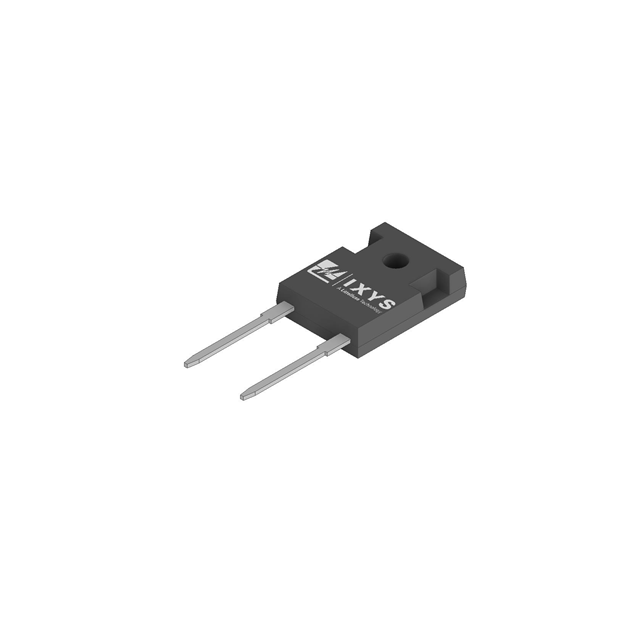

Littelfuse Inc. LSIC2SD170B25 is a Silicon Carbide (SiC) Schottky diode designed for high-voltage applications. This through-hole component, housed in a TO-247-2 package, offers a maximum DC reverse voltage of 1700 V and an average rectified forward current capability of 70 A. The forward voltage drop (Vf) is rated at 1.8 V at 25 A, and it exhibits a minimal reverse leakage current of 100 µA at its maximum reverse voltage. Notably, this SiC diode features a reverse recovery time (trr) of 0 ns, indicating no recovery time above 500 mA. The junction operating temperature range is from -55°C to 175°C. This device finds application in power factor correction circuits, inverters, and industrial power supplies where high efficiency and robust performance are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-2 |
| Mounting Type | Through Hole |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Technology | SiC (Silicon Carbide) Schottky |
| Capacitance @ Vr, F | 1860pF @ 1V, 1MHz |
| Current - Average Rectified (Io) | 70A |
| Supplier Device Package | TO-247-2 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 1700 V |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 25 A |
| Current - Reverse Leakage @ Vr | 100 µA @ 1700 V |
