SV6050N2TP
50 AMP STANDARD SCR TO-263Manufacturer: Littelfuse Inc.
Categories: SCRs
Quality Control: Learn More
SCR 700 V 50 A Sensitive Gate Surface Mount TO-263 (D2PAK)
Additional Information
Series: SVxx50xAxRoHS Status: unknownManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 456A, 550A |
| Current - On State (It (AV)) (Max) | 31.5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | TO-263 (D2PAK) |
| Grade | Automotive |
| Current - On State (It (RMS)) (Max) | 50 A |
| Voltage - Off State | 700 V |
| Qualification | AEC-Q101 |
Request a Quote
Clients Also Buy
SV6050NA2RP
AEC-Q GRADE 50 AMP STANDARD HIGH

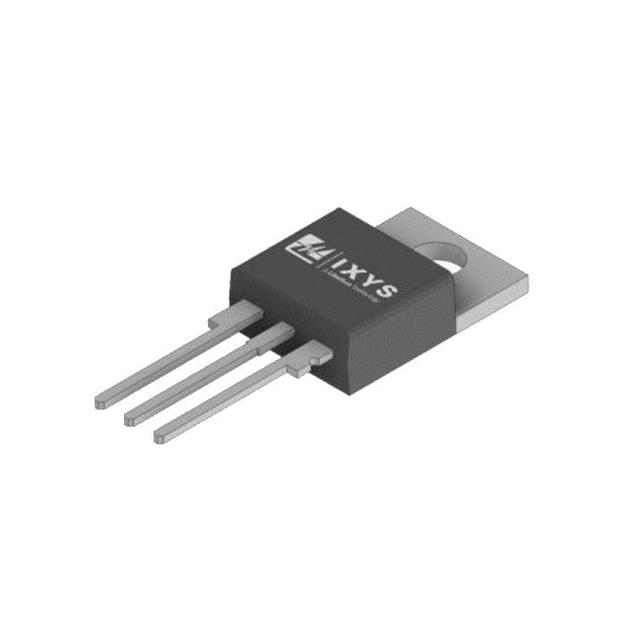

SV6050RA2TP
