SJ6040N2RP
SCR 600V 40A TO263Manufacturer: Littelfuse Inc.
Categories: SCRs
Quality Control: Learn More
SCR 600 V 40 A Standard Recovery Surface Mount TO-263 (D2PAK)
Additional Information
Series: SJxx40xxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Current - Hold (Ih) (Max) | 50 mA |
| Current - Gate Trigger (Igt) (Max) | 15 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 430A, 520A |
| Current - On State (It (AV)) (Max) | 25 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Off State (Max) | 10 µA |
| Supplier Device Package | TO-263 (D2PAK) |
| Grade | - |
| Current - On State (It (RMS)) (Max) | 40 A |
| Voltage - Off State | 600 V |
| Qualification | - |
Request a Quote
Clients Also Buy

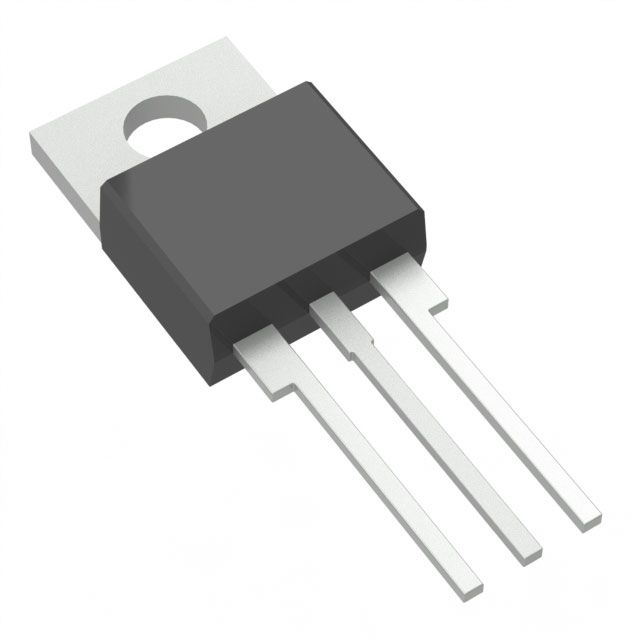

SJ6040R2TP
