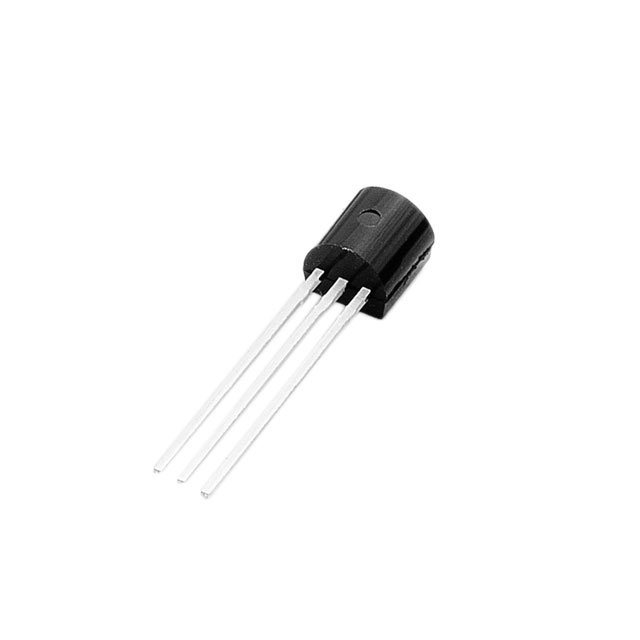

S8X5ECS2
SCR SEN 800V 0.5A TO-92WBManufacturer: Littelfuse Inc.
Categories: SCRs
Quality Control: Learn More
SCR 800 V 500 mA Sensitive Gate Through Hole TO-92
Additional Information
Series: EVRoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Gate Trigger (Igt) (Max) | 50 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A, 12A |
| Current - On State (It (AV)) (Max) | 300 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - Off State (Max) | 3 µA |
| Supplier Device Package | TO-92 |
| Current - On State (It (RMS)) (Max) | 500 mA |
| Voltage - Off State | 800 V |
