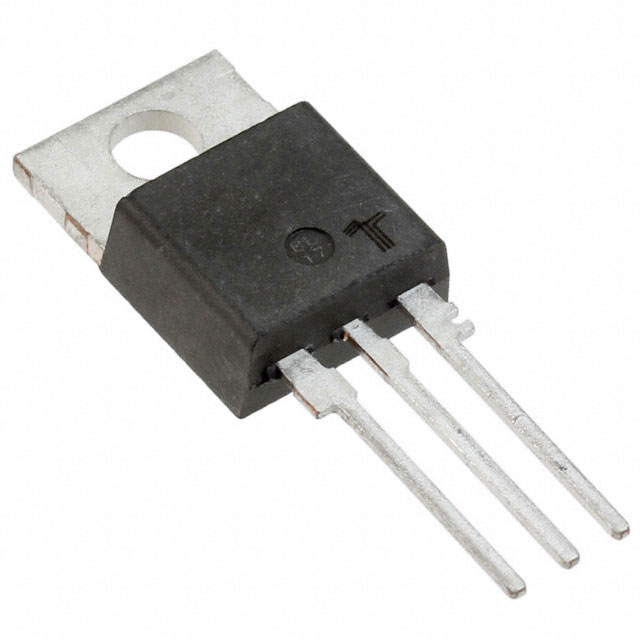

SCR 800 V 55 A Standard Recovery Through Hole TO-220 Non-Isolated Tab
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Gate Trigger (Igt) (Max) | 40 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 550A, 650A |
| Current - On State (It (AV)) (Max) | 35 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - Off State (Max) | 20 µA |
| Supplier Device Package | TO-220 Non-Isolated Tab |
| Current - On State (It (RMS)) (Max) | 55 A |
| Voltage - Off State | 800 V |
