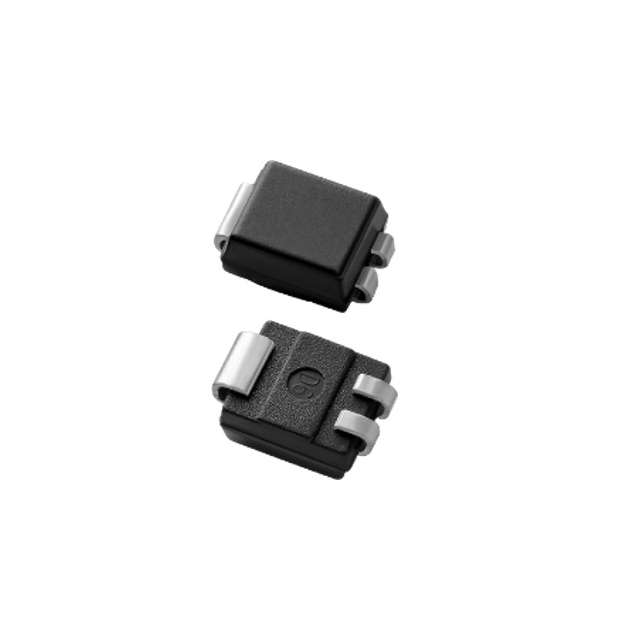

S802CS2RP
SCR 800V 1.25A DO214Manufacturer: Littelfuse Inc.
Categories: SCRs
Quality Control: Learn More
SCR 800 V 1.25 A Sensitive Gate Surface Mount Compak
Additional Information
Series: Sx02CSxRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-214AA, SMB (3 Leads), Compak |
| Mounting Type | Surface Mount |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 16A, 20A |
| Current - On State (It (AV)) (Max) | 800 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.7 V |
| Current - Off State (Max) | 1 µA |
| Supplier Device Package | Compak |
| Current - On State (It (RMS)) (Max) | 1.25 A |
| Voltage - Off State | 800 V |
