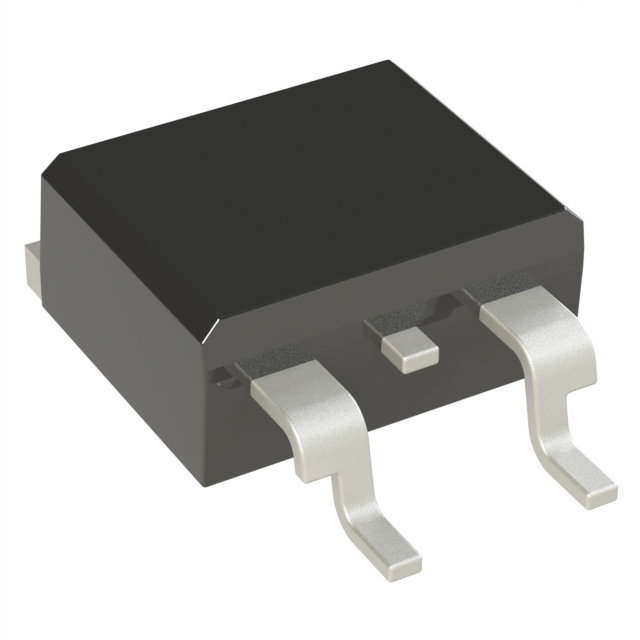

SCR 800 V 16 A Standard Recovery Surface Mount TO-263 (D2PAK)
Additional Information
Series: Teccor®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Current - Hold (Ih) (Max) | 40 mA |
| Current - Gate Trigger (Igt) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 188A, 225A |
| Current - On State (It (AV)) (Max) | 10 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Voltage - On State (Vtm) (Max) | 1.6 V |
| Current - Off State (Max) | 20 µA |
| Supplier Device Package | TO-263 (D2PAK) |
| Current - On State (It (RMS)) (Max) | 16 A |
| Voltage - Off State | 800 V |
