SCR 600 V 1.5 A Sensitive Gate Through Hole TO-92
Additional Information
Series: Teccor®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 3 mA |
| Current - Gate Trigger (Igt) (Max) | 100 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 14A, 16.8A |
| Current - On State (It (AV)) (Max) | 950 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | TO-92 |
| Current - On State (It (RMS)) (Max) | 1.5 A |
| Voltage - Off State | 600 V |
Request a Quote
Clients Also Buy
SK015LTP
SCR 1KV 15A ITO220AB
SK025RTP
SCR 1KV 25A TO220AB

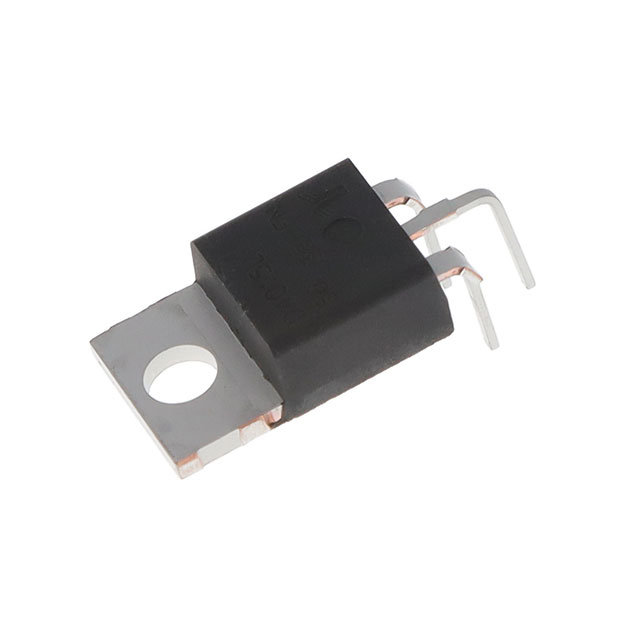

D4015L56TP
